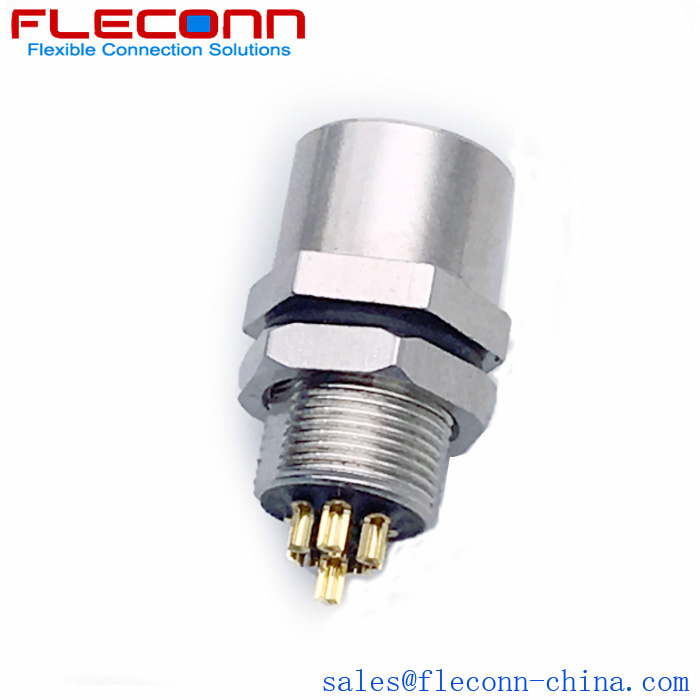

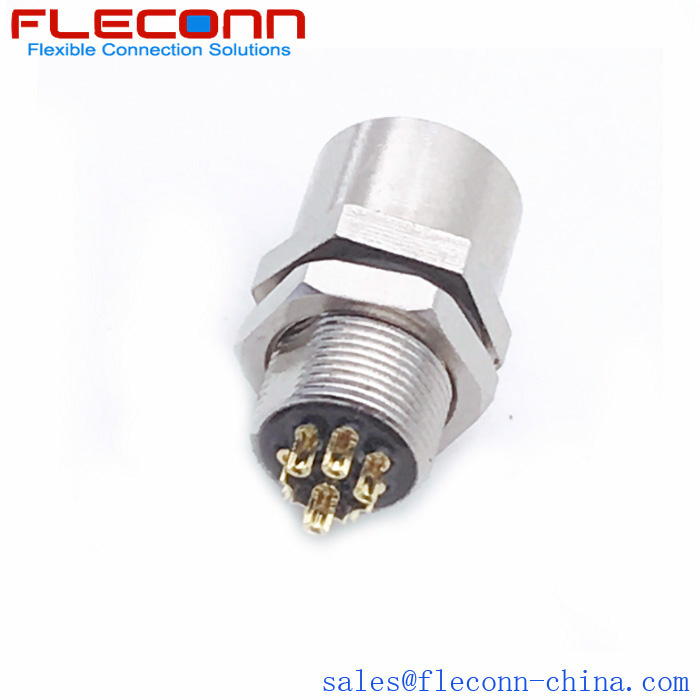

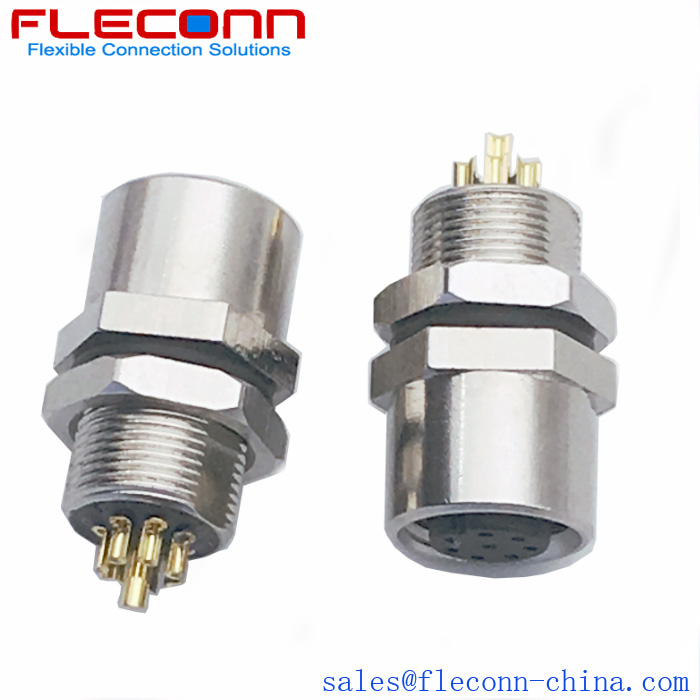

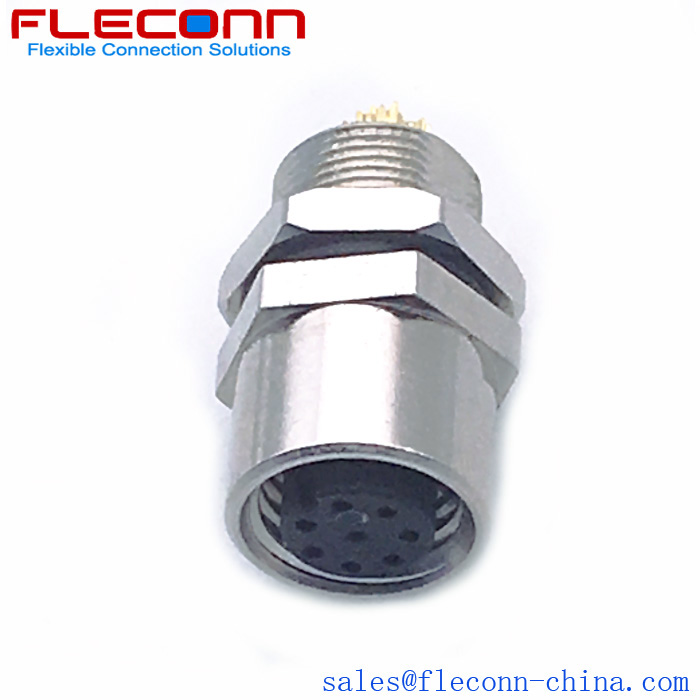

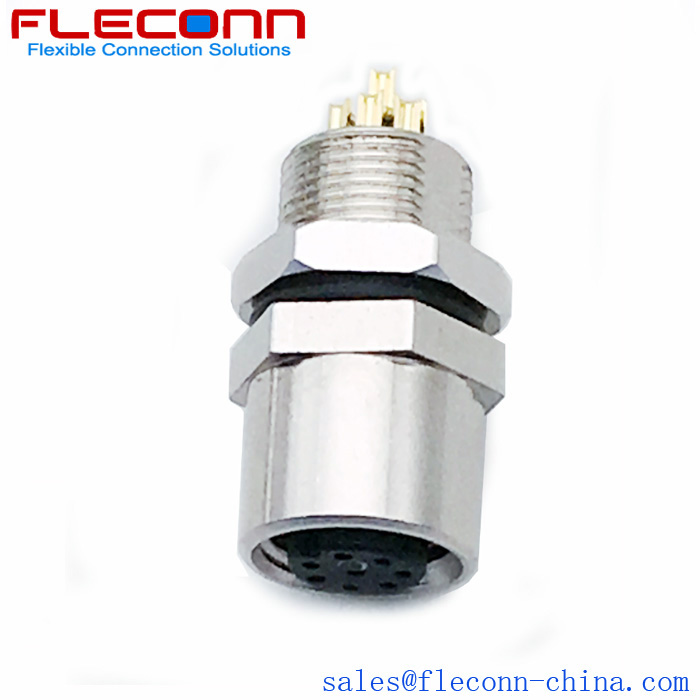

M8 8 Pin Female Panel Mount Connector, Rear Fastening Thread M8x0.5
M8 8 Pin Female Panel Mount Connector, Rear Fastening Thread M8x0.5 M8 8 Pin Female Panel Mount Connector, Rear Fastening Thread M8x0.5 M8 8 Pin Female Panel Mount Connector, Rear Fastening Thread M8x0.5 M8 8 Pin Female Panel Mount Connector, Rear Fastening Thread M8x0.5 M8 8 Pin Female Panel Mount Connector, Rear Fastening Thread M8x0.5

M8 8 Pin Female Panel Mount Connector, Rear Fastening Thread M8x0.5

Item No.: 00507
Product series: M8 Panel Mount Connector with Solder-Cup Terminals
Wire gauge: 22-28AWG
Connector Gender:  Male and famale
Waterproof grade: IP67
Connector core number: 8 Pin
Plug Guide: Right Angle
Request Quote
Description
Description

M8 8 Pole Female Panel Connector with Solder Cup Pin Description



M8 molded cable connector (plug) product, the connector parts and the cable have been injection-molded together before leaving the factory. Our common wire material is PUR or PVC outer jacket material cable, and the internal core wire is required according to the terminal application of the product. We commonly use PVC, SR-PVC, PP, PE and other materials for selection. The matching M8 board end connectors (sockets) include electronic wire welding type and PCB board pin type. The M8 board end welding type can be welded electronic wire and resin potting package according to customer's reservation requirements.

M8 8Pin Female Panel Connector, Wire Solder Pin, Front Mounting product parameters



Product series: M8 Connector Cable Connector Gender: Male and famale
Industry standard: IEC 61076-2-104 Connector core number: 8P
Plug Guide: Right Angle Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Wire gauge: 20-28AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 30V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
 Wire cover: PVC/PUR


M8 A-coded 8 Position Female Panel Connector with Rear Fastening Thread

M8 8 Pin Female Panel Mount Connector, Rear Fastoning Thread M8x0.5


M8 8 Pole Female Panel Connector with Solder Cup Pin


M8 8Pin Female Panel Connector, Wire Solder Pin, Front Mounting


M8 A-coded 8 Position Female Panel Connector with Rear Fastening Thread


M8 8 Pin Female Panel Mount Connector


Other M8 Panel Mount Connector

M8 connector is classified as m8 field wireable cable connector, m8 molded cable connector, m8 pcb connector, m8 panel mount connector with wire solder cup terminals
