M8 Connector 3 Pin, Male, Field Wireable
M8 Connector 3 Pin, Male, Field Wireable M8 Connector 3 Pin, Male, Field Wireable M8 Connector 3 Pin, Male, Field Wireable M8 Connector 3 Pin, Male, Field Wireable M8 Connector 3 Pin, Male, Field Wireable

M8 Connector 3 Pin, Male, Field Wireable

Item No.: M8-B-M-ST-03P-01
Product series: M8 Connector
Connector code: B type
Connector Gender: Male
Waterproof grade: IP67
Connector core number: 3P
Plug Guide: Straight
Request Quote
Description
Description

M8 Connector 3 Pin Product Description



FLECONN can supply 3 pin male plug and 4 pole m8 female cable connector. These m8 field wireable cable connectors may be used for for connecting sensor and industry automation systems by field assembling and installing with various lenght cables.


M8 Connector 3 Pin product parameters



Product series: M8 Connector Connector Gender: Male
Connector code: B type Connector core number: 3P
Industry standard: IEC61076-2-101 Connector type: Field assembly
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M8 Connector 3 Pin Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


M8 Connector 3 Pin Picture

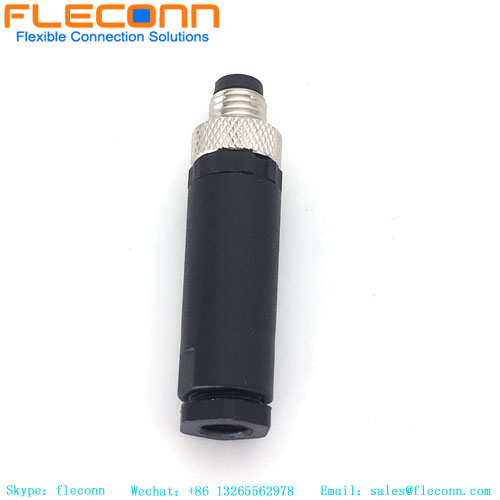

M8 3 Pin Male Assembled Connector

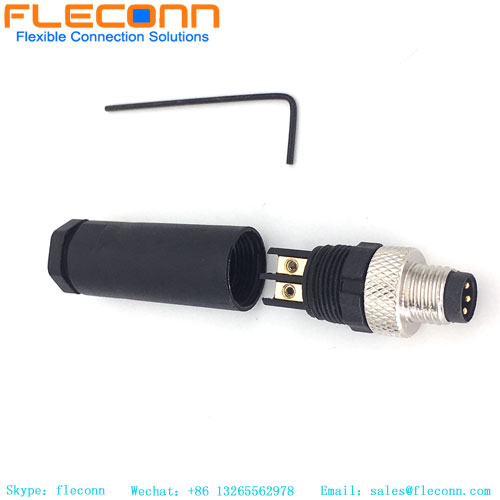

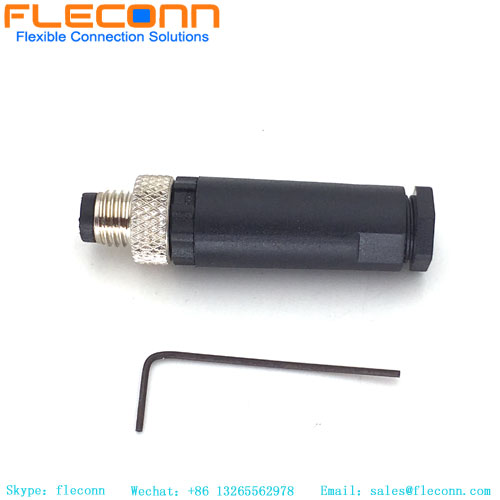

M8 Connector 3 Pin, Male, Field Wireable

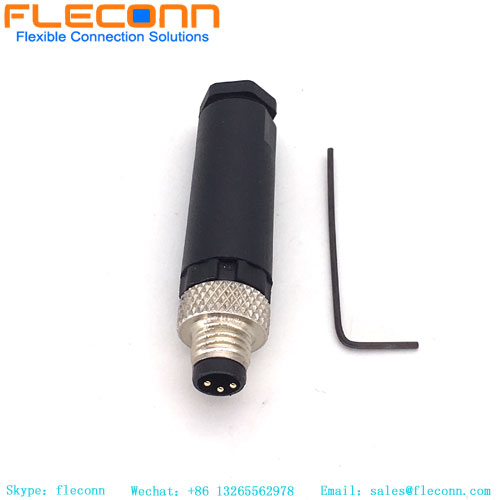

M8 3 Pin Male Connector

M8 3 Pin Cable Connector

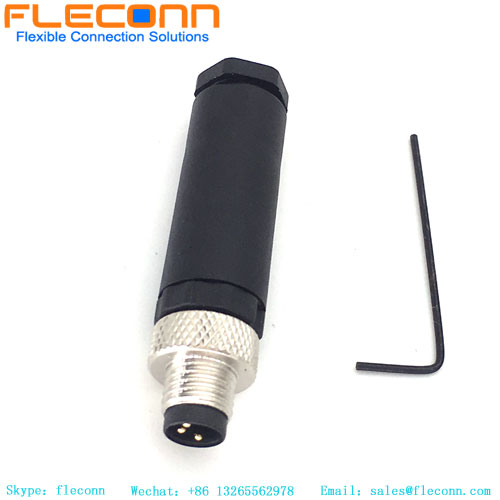

M8 3 Pin Connector, Male, Field Wireable, IP67 Waterproof

Other M8 Connector

FLECONN can provide IP66 waterproof M8 3Pin Connector for power and signal transmission connections.
