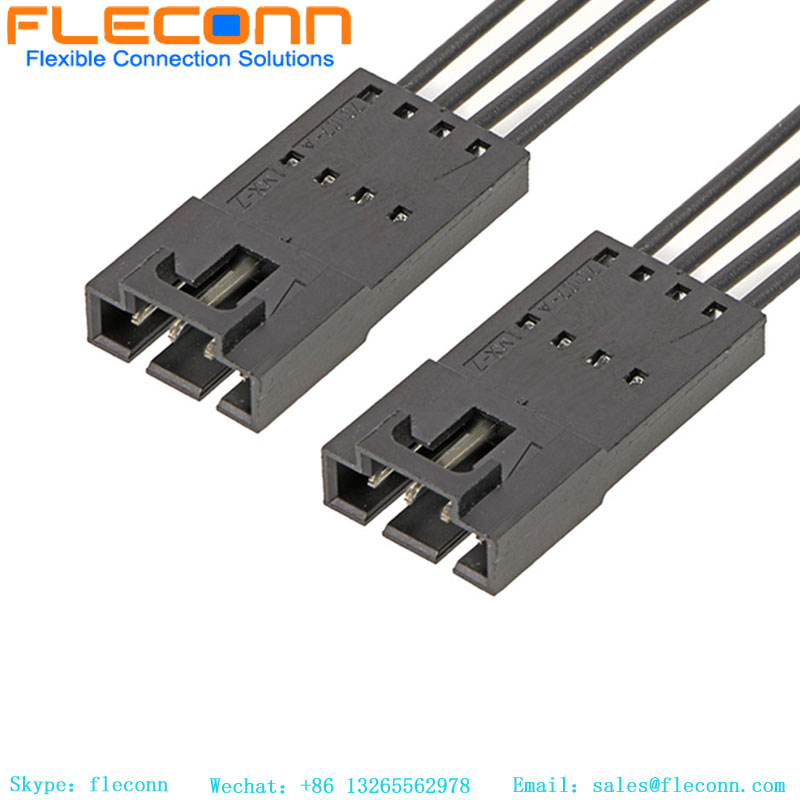

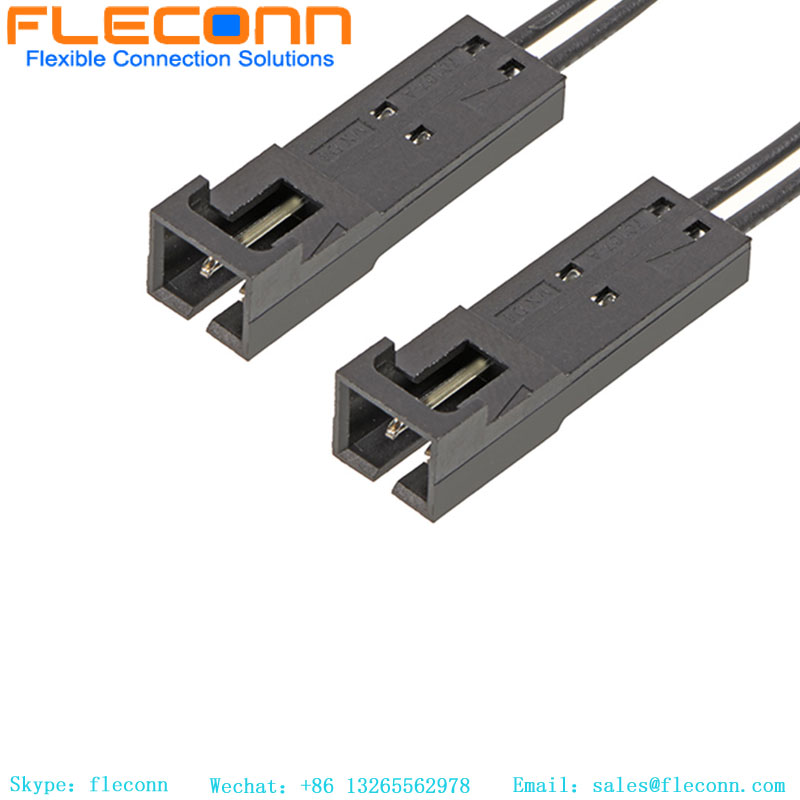

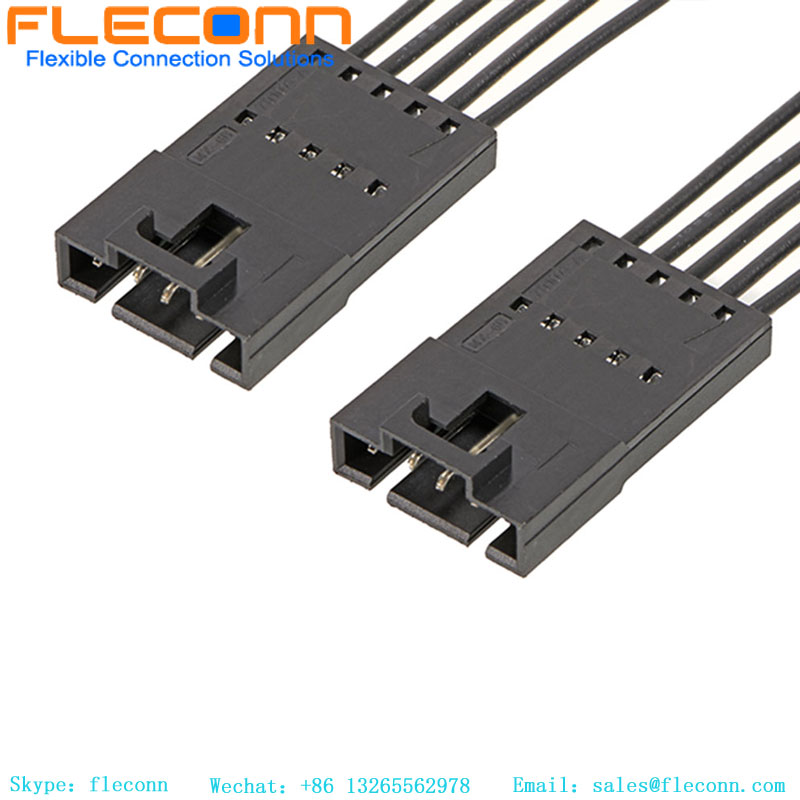

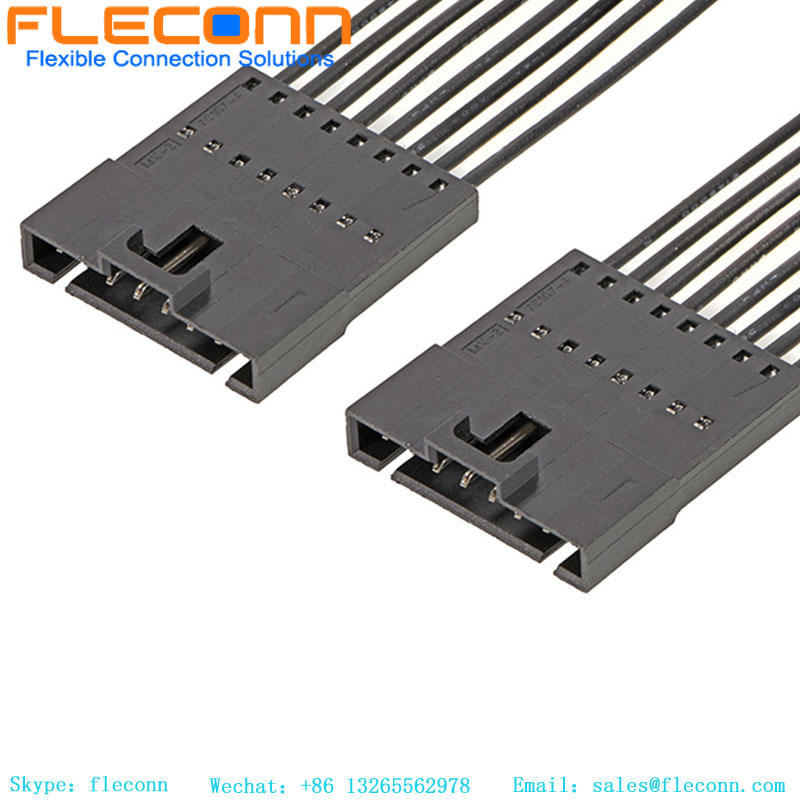

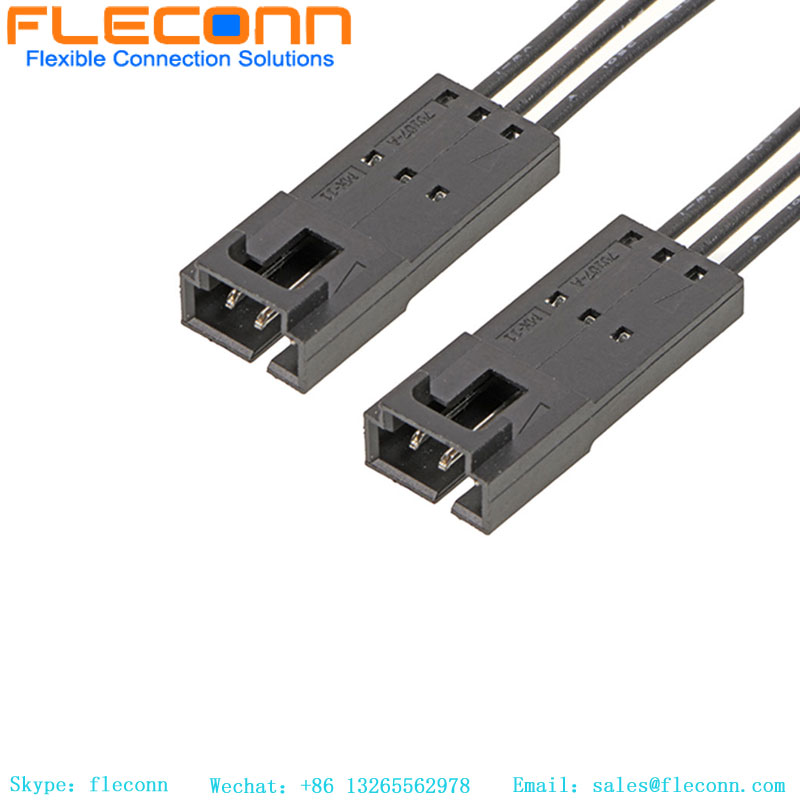

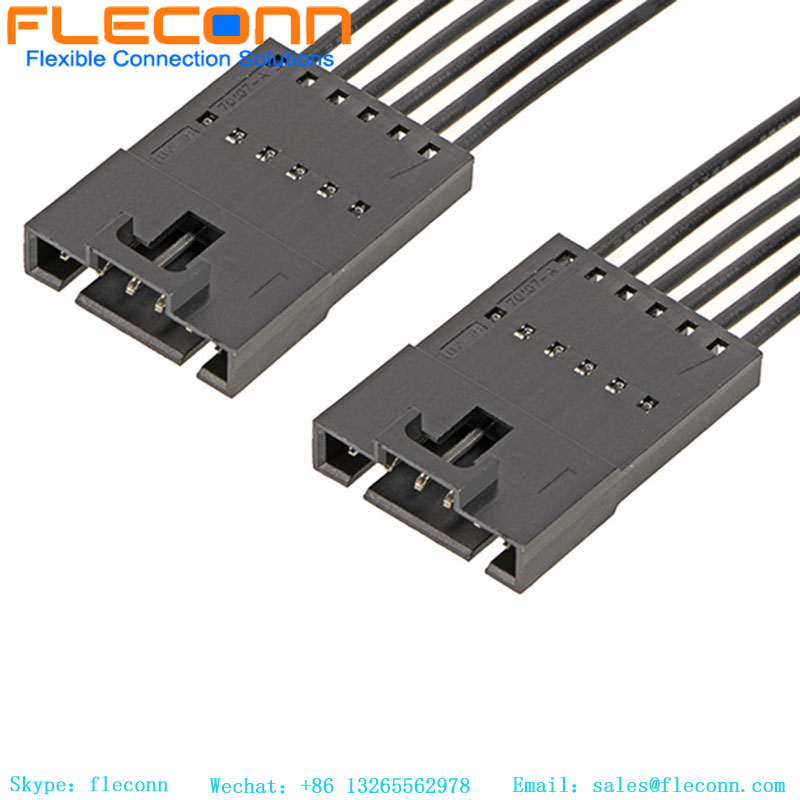

Molex 70107 Series 2.54mm Pitch Cable Assembly
Molex 70107 Series 2.54mm Pitch Cable Assembly Molex 70107 Series 2.54mm Pitch Cable Assembly Molex 70107 Series 2.54mm Pitch Cable Assembly Molex 70107 Series 2.54mm Pitch Cable Assembly Molex 70107 Series 2.54mm Pitch Cable Assembly Molex 70107 Series 2.54mm Pitch Cable Assembly

Molex 70107 Series 2.54mm Pitch Cable Assembly

Item No.: MX-70107-08P-2.54PH-PVC-0.5M
Product Name: 2.54mm Pitch Wire Harness
Connector Pitch：2.54MM
Connector : Molex 701070007, 2/3/4/5/6/8 pin
Crimp Terminal: 16020107
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Request Quote
Description Review
Description

Molex 70107 Series 2.54mm Pitch Cable Assembly Product Description


FLECONN can custom made  overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.

Detail description for Molex 2.54mm Pitch 701070007 Cable Assembly

Prouduct Name  Custom Molex 701070007 Connector Wire Harness
Equivalent to Molex Part No.  2162721080，2162721081，2162721082，2162721083，2162721084，701070007
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 701070005 2.54mm Pitch Receptacle Housing, Dual Row, 8 Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 16020107 2.54mm Pitch Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 22-24 AWG, Reel. 16020077 24-30 AWG
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007 AWG28#/26#/24#/22#/ tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1007 Round cable/ UL1571 Parallel cable
10. Color: Black, white, blue, green etc. MOQ 3000m except black.
11. Wiring diagrm: defined by customers
12. Inner molding material: LDPE resin
13. Outer molding material: 45P PVC resin
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag
























Molex 70107 Series 2.54mm Pitch Cable Assembly

Molex 70107 Series 2.54mm Pitch Cable Assembly

Molex 701070001 2.54mm Pitch Wire-to-Wire Cable Assembly

Molex 3 Pin 701070002 Connector Cable

Molex 701070003 SL Wire-to-Wire Crimp Housing Wire Harness

Custom Molex 5 Pin 2.54mm Pitch 701070004 SL Wire-to-Wire Connector Cable

Molex 6 Pin Crimp Housing 701070005 Wire Harness

Molex Connector Cable Harnesses

FLECONN can custom Molex Micro-Fit 3.0 made overmolded cable assemblies available in various circuits and cable lengths.
