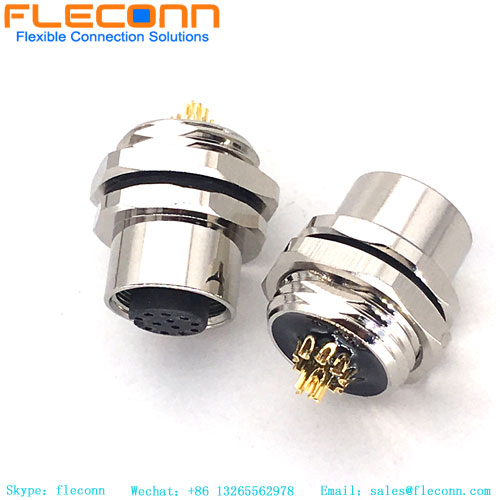

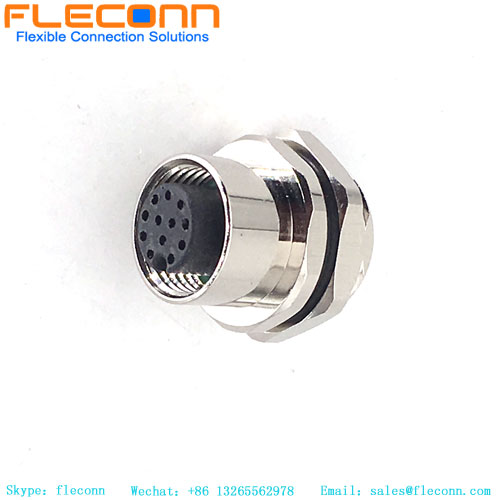

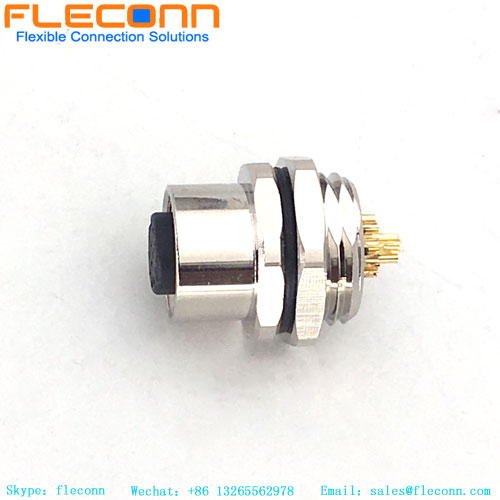

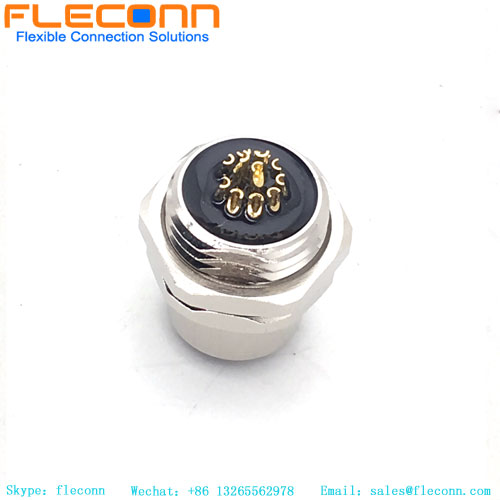

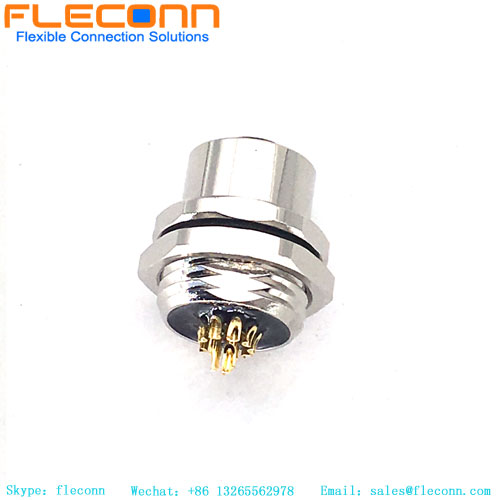

M12 A-Coded 12 Pin Female Connector, Panel Mount type, Rear lock Connector
M12 A-Coded 12 Pin Female Connector, Panel Mount type, Rear lock Connector M12 A-Coded 12 Pin Female Connector, Panel Mount type, Rear lock Connector M12 A-Coded 12 Pin Female Connector, Panel Mount type, Rear lock Connector M12 A-Coded 12 Pin Female Connector, Panel Mount type, Rear lock Connector M12 A-Coded 12 Pin Female Connector, Panel Mount type, Rear lock Connector

M12 A-Coded 12 Pin Female Connector, Panel Mount type, Rear lock Connector

Item No.: M12-A-F-PM-ST-12P-01
Product series: M12 Panel Mount Connector
Connector code: A type
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 12P
Plug Guide: Straight
Request Quote
Description
Description

M12 A-Coded 12 Pin Female Connector, Panel Mount type, Rear lock Connector Product Description



M12 panel mount connector with 3 4 5 6 8 12 17 Pin male plug and female socket and gold-plated contacts available can be provided by FLECONN. In order to determine the direction of the angled cable outlet of the mating connector,  we can provide 90 degree right angled M12 panel mount connectors with 4, 5 and 8 position in wire solder pin and PCB DIP solder pin. When completely mated the connectors are IP67 rated to ensure protection from liquids and dust.


M12 A-Coded 12 Pin Female Connector, Panel Mount type, Rear lock Connector product parameters



Product series: M12 Panel Mount Connector Connector Gender: Female
Connector code: A type Connector core number: 12P
Industry standard: IEC61076-2-109 Connector type: Panel type, rear lock
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 26AWG Connection method: threaded connection
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 250V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M12 A-Coded 12 Pin Female Connector, Panel Mount type, Rear lock Connector Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


M12 A-Coded 12 Pin Female Connector, Panel Mount type, Rear lock Connector
M12 A-Coded 12 Pin Female Connector, Panel Mount type, Rear lock Connector


M12 A Coded 12 Pin Connector， Front Panel Mount


M12 12 Pin Female Panel Mount Connector，Rear Fastening Thread

M12 A-Code 12 Pole Panel Mount Connector

M12 12 Position A Code Female Mount Receptacle, Front Mounting Style

Other M12 Panel Mount Connector

FLECONN can provide high quality 180 degree straight 3 pin 4 pin 5 pole 6 positions 8 pin male and female a-code b-code c-code d-code l-code k-code s-code t-code x code m12 pcb panel mount connector with PG9 and m16x1.5 front and rear fastening thread.
