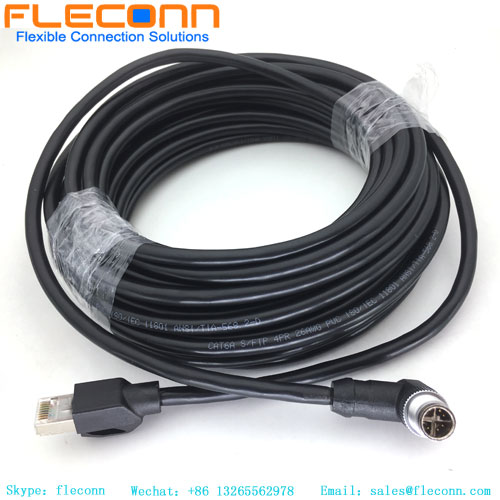

Right Angle M12 X Coded 8 Pin Male To RJ45 Male Straight Connector Cable, Cat 6A Industrial Ehternet Cable

Item No.: M12-X-M-RJ45-RA-08P-1M
Product series: M12 X-Coded to RJ45 Ethernet Cable
Connector code: X-Coded
Connector Gender: Male
Waterproof grade: IP67
Connector core number: 8-Pole
Plug Guide: Right Angle
Description
Description

Right Angle M12 X Coded 8 Pin Male To RJ45 Straight Connector Cable Product Description



M12 molded cable connector (plug) product, the connector parts and the cable have been injection-molded together before leaving the factory. Our common wire material is PUR or PVC outer jacket material cable, and the internal core wire is required according to the terminal application of the product. The insulation materials we commonly use are PVC, SR-PVC, PP, PE. The matching M12 board-end connectors (sockets) are soldered electronic wire type and PCB board pin type. M12 board-end soldering type can be welded electronic wire and resin potting package according to customer's reservation requirements.


M12 X Coded To RJ45 Connector Cable product parameters




Product series: M12 X-Coded to RJ45 Ethernet Cable Connector Gender: Male
Connector code: X-Coded Connector core number: 8 Pin
Industry standard: IEC61076-2-101 Connector type: Single head with cable
Plug Guide: Right Angle Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Adapter wire gauge: 22-26AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 0.5A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
Wire cover: PVC/PUR


M12 X Coded To RJ45 Connector Cable Cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

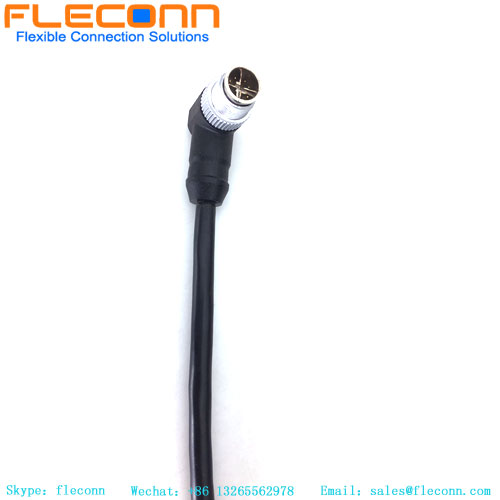

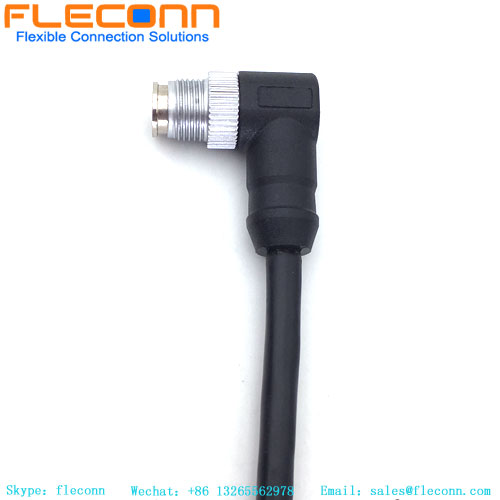

M12 X Coded Male Right Angle To Stragith RJ45 Connector Cable
M12 Female To Rj45 Cable

M12 X-Coded Ethernet Cable


M12 X-coded To RJ45 Connector Cable

M12 To RJ45 Cable


Male RJ45 Ethernet Cable

Other M12 Connector Cable

FLECONN can provide IP66 waterproof M12 8-bit X-coded female to RJ45 Ethernet cables for power and signal transmission connections.
