M8 6 Pin Female Panel Connector Front Side Fastening End with JST Connectors Wire Harness Description
FLECONN could supply various m8 male and female panel mount connectors. These m8 circular connectors may be classified as straight and 90 degree right angle m8 panel mount connectors, shielded and unshielded pcb panel mount connectors, front and rear panel mount, front and rear fasten screw thread, wire solder pin and DIP solder pin connectors. There are 3 4 5 6 8 pin / pole / positions male and female m8 panel mount connectors available for connection systems of various sensor, industry automation equipment, robot and machine .
M8 6 Pin Female Panel Mount Connector Wire Harness product parameters
Product series: M8 Panel Mount Connector Cable |
Connector Gender: Male |
Connector code: B-coded |
Connector core number: 6Pin |
Industry standard: IEC61076-2-101 |
Connector type: Rear Panel Mounting |
Plug Guide: Straight |
Terminal Material: Copper |
Waterproof grade: IP67 |
Applicable temperature: -20°- +80° |
Adapter wire gauge: 22AWG-26AWG |
Connection method: threaded connection |
Rated current: 4A |
Connector conductor: copper gold plated |
Rated voltage: 60V |
Insulation resistance: ≥100mΩ |
Sealing method: O type sealing ring |
Conductor resistance: ≤5mΩ |

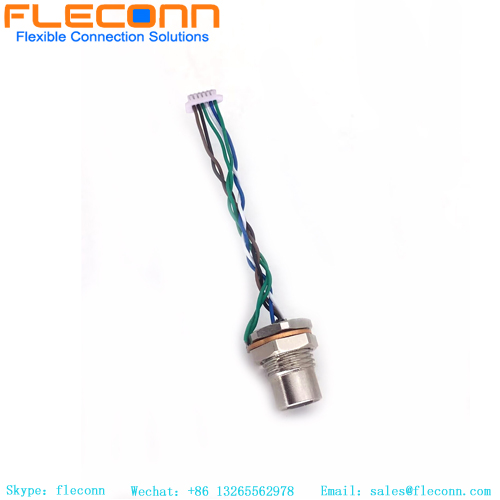

M8 6 Pin Front Fastening Connector With JST SHR-06V-S Wire Harness
●Sensors, actuators, encoders, motors |
●Industrial grating light curtains |
●Factory automation process control |
●Equipment battery, semiconductor |
●Package label printing equipment |
●Fieldbus: DeviceNet, CANopen, etc. |
●Industrial instruments and equipment |
●NMEA 2000 ship electronics, rail transit |
●EMS circuit board assembly |
●LED outdoor display, outdoor LED lighting |
M8 6 Pin Female Front Mount Connector Wire Harness
![](/u_file/2307/products/25/aec8a142b6.jpg)

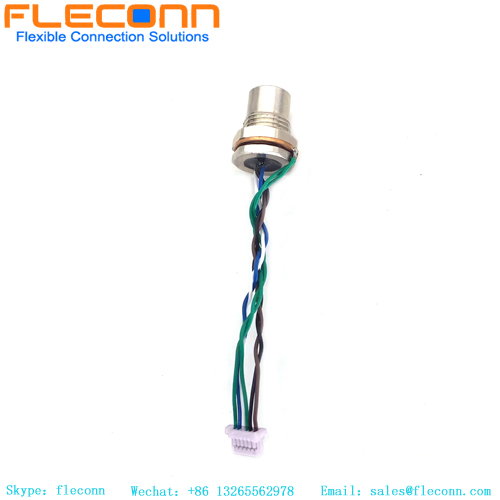

![M8 6 Pin Female Front Mount Connector Wire Harness M8 6 Pin Female Front Mount Connector Wire Harness](/u_file/2307/products/25/f804322a8c.jpg)
![M8 6 Pin Female Panel Connector Front Side Fastening End with JST Connectors Wire Harness M8 6 Pin Female Panel Connector Front Side Fastening End with JST Connectors Wire Harness](/u_file/2307/products/25/66b1a9c065.jpg)
![M8 6 Pin Female Panel Mount Connector Wire Harness M8 6 Pin Female Panel Mount Connector Wire Harness](/u_file/2307/products/25/d4d61c71a6.jpg)

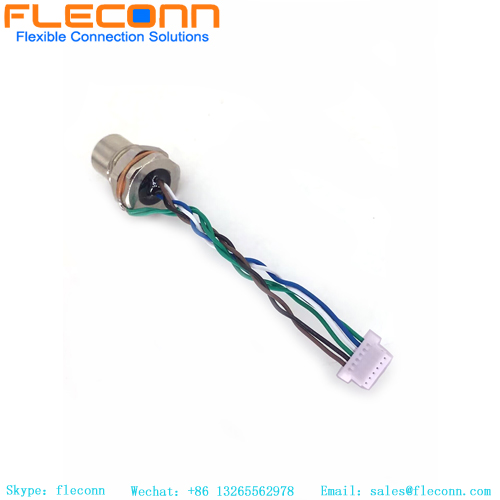

![M8 6 Pin Rear Fastening Connector With JST SHR-06V-S Wire Harness M8 6 Pin Rear Fastening Connector With JST SHR-06V-S Wire Harness](/u_file/2307/products/25/0926c7f335.jpg)
