M8 B-code 5 Pole Front Panel Mount Connector With Soldered Wire Pigtails Product Description
FLECONN could supply various m8 male and female panel mount connectors. These m8 circular connectors may be classified as straight and 90 degree right angle m8 panel mount connectors, shielded and unshielded pcb panel mount connectors, front and rear panel mount, front and rear fasten screw thread, wire solder pin and DIP solder pin connectors. There are 3 4 5 6 8 pin / pole / positions male and female m8 panel mount connectors available for connection systems of various sensor, industry automation equipment, robot and machine.
M8 B-code 5 Pin Male Panel Mount Connector With Soldered Wire Pigtails product parameters
Product series: M8 Panel Mount Connector Cable |
Connector Gender: Male |
Connector code: B-coding |
Connector core number: 5Pin |
Industry standard: IEC61076-2-101 |
Connector type: Panel mount |
Plug Guide: Straight |
Terminal Material: Copper |
Waterproof grade: IP67 |
Applicable temperature: -20°- +80° |
Adapter wire gauge: 22AWG-26AWG |
Connection method: threaded connection |
Rated current: 4A |
Connector conductor: copper gold plated |
Rated voltage: 60V |
Insulation resistance: ≥100mΩ |
Sealing method: O type sealing ring |
Conductor resistance: ≤5mΩ |
M8 B-coded 5 Pin Male Panel Mount Connector With 22AWG Single Wires Applications
●Sensors, actuators, encoders, motors |
●Industrial grating light curtains |
●Factory automation process control |
●Equipment battery, semiconductor |
●Package label printing equipment |
●Fieldbus: DeviceNet, CANopen, etc. |
●Industrial instruments and equipment |
●NMEA 2000 ship electronics, rail transit |
●EMS circuit board assembly |
●LED outdoor display, outdoor LED lighting |
M8 5 Contacts Male Panel Mount Plug Cable, Rear Fastened Hex Nut Picture

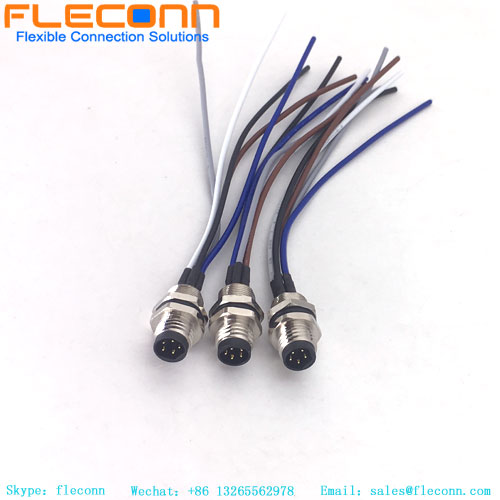

![M8 5 Contacts Male Panel Mount Plug Cable M8 5 Contacts Male Panel Mount Plug Cable](/u_file/2209/products/22/7576162cb3.jpg)

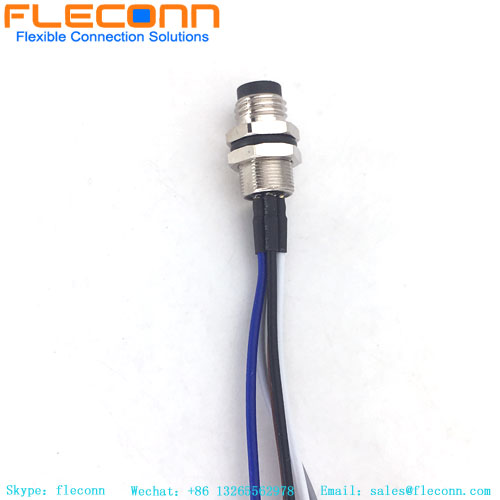

![M8 5 Pin Male Plug Panel Mount Cable M8 5 Pin Male Plug Panel Mount Cable](/u_file/2209/products/22/89dd7775b8.jpg)
![M8 5 Pole Male Panel Mount With Wires M8 5 Pole Male Panel Mount With Wires](/u_file/2209/products/22/5ee3e4c3e4.jpg)

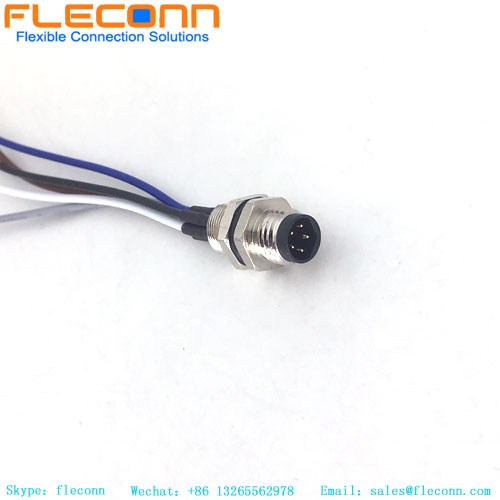

![M8 5 Pin Panel Mount Cable M8 5 Pin Panel Mount Cable](/u_file/2209/products/22/53072babb9.jpg)
![M8 5 Pin B-coded Panel Connector With Cable M8 5 Pin B-coded Panel Connector With Cable](/u_file/2209/products/22/68c7f7d81f.jpg)
![M8 Panel Mount Connector Cable FLECONN can provide various m8 3 4 5 6 8 pin male and female front and rear panel mount connector with free wire leads for sensors.](/u_file/2307/photo/81e38e8ae7.jpg)
![M8 Connector M8 connector is classified as m8 field wireable cable connector, m8 molded cable connector, m8 pcb connector, m8 panel mount connector with wire solder cup terminals](/u_file/2208/photo/2f30af7391.jpg)
