4.2mm Pitch 0039013103 Male Connector Wire Harness Description
FLECONN, as an overmolded cable assemblies and molded wire harness manufacturer, can custom 0039 series molex microfit 4.2 cable with micro-fit 4.2 connector for power transmision. There are 2 4 6 8 10 12 14 16 18 20 22 24 pin Molex Micro-Fit 4.2 Cable receptacle housing such as manufacturer part number 0039012100,0039012140,0039013103,0039013143 available.
Custom Molex 4.2mm 10 Pin Connector Cable
Prouduct Name |
Molex Micro-Fit 4.2 Series 0039012140 10 Pin Connector Overmolded Cable Assemblies |
Equivalent to Molex Part No. |
0039012103 |
Applications |
Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc. |
Technique characters |
1. Connector housing: 0039012103 Micro-Fit 4.2 Receptacle Housing, Dual Row, 10 Circuits, UL 94V-0, Low-Halogen |
2. Crimp terminal: 39000040 Micro-Fit 1.2 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact |
3. Connector type: rectangular |
4. Connector Feature: latch lock |
5. Wire: UL1007AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation. |
6. Cable jacket: black PVC jacket |
7. Shielded: un-shielded / braided shielded |
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized |
9. Cable style: UL1571 Round cable/ UL1007 Parallel cable |
10. Wiring diagrm: defined by customers |
Environment temperature: |
Ambient temperature for operation: -25…80℃ |
Waterproof Rating: |
IP4X |
Certificate: |
CE, RoHS, UL(connector, cable) |
Package: |
**pcs/bind or 1pcs/PE bag |
Molex 4.2mm Pitch 0039013103 Male Connector Cable

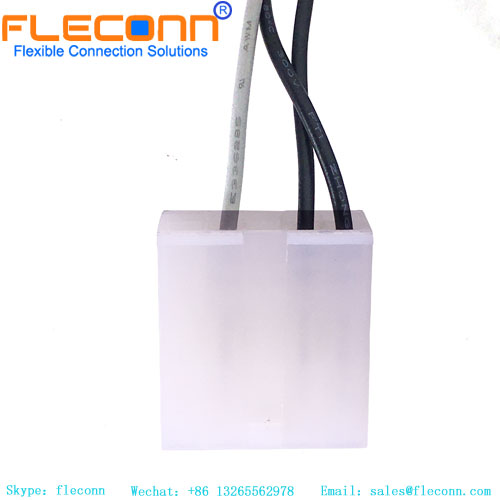

![4.2mm Pitch 0039013103 Male Connector Wire Harness 4.2mm Pitch 0039013103 Male Connector Wire Harness](/u_file/2310/products/19/380831383d.jpg)

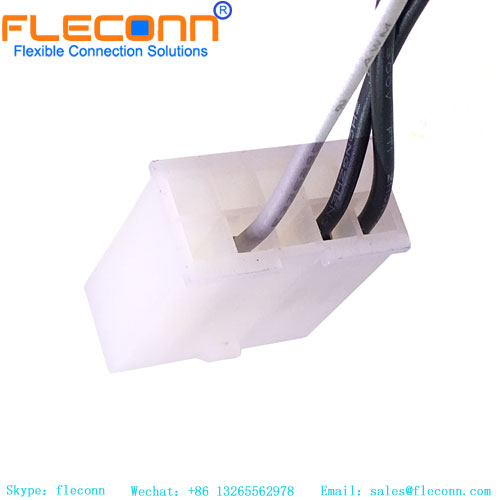

![Custom Molex 4.2mm 10 Pin Connector Cable Custom Molex 4.2mm 10 Pin Connector Cable](/u_file/2310/products/19/e9896e6b36.jpg)

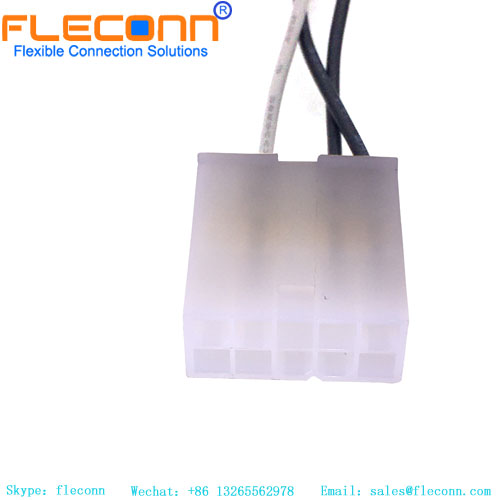

![Molex 4.2mm Pitch 0039013103 Male Connector Cable Molex 4.2mm Pitch 0039013103 Male Connector Cable](/u_file/2310/products/19/34ae637953.jpg)

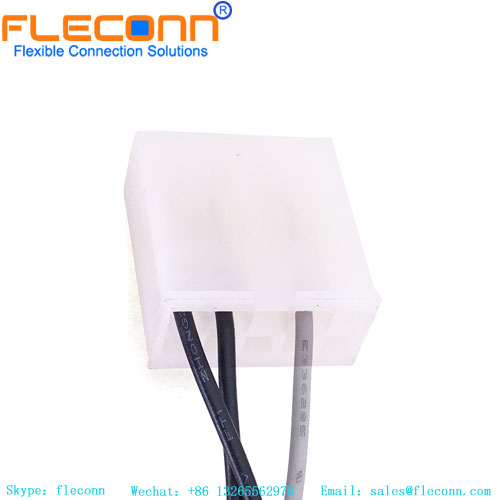

![MOLEX 0039012103 10 Pin Connector Wire Harness, 4.2mm Pitch Wire to Board Connector MOLEX 0039012103 10 Pin Connector Wire Harness, 4.2mm Pitch Wire to Board Connector](/u_file/2310/products/19/605d08a1f1.jpg)
