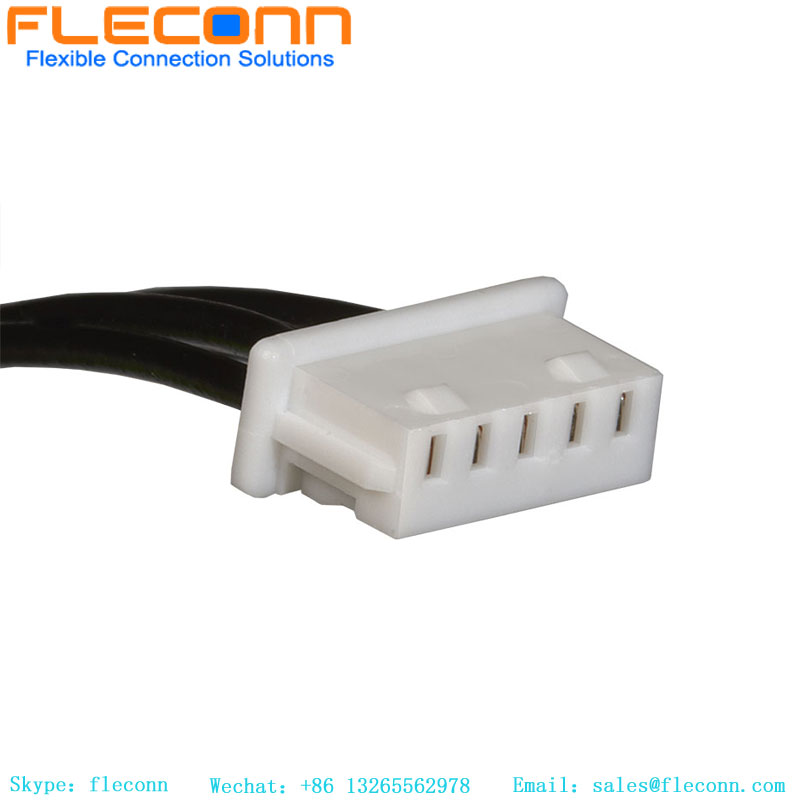

Molex 51021 Series 1*5Pin Wire Harness
Molex 51021 Series 1*5Pin Wire Harness Molex 51021 Series 1*5Pin Wire Harness Molex 51021 Series 1*5Pin Wire Harness Molex 51021 Series 1*5Pin Wire Harness Molex 51021 Series 1*5Pin Wire Harness

Molex 51021 Series 1*5Pin Wire Harness

Item No.: MX-51021-5P-1.25PH-0.5M
Product Name: 1.25mm Pitch Wire Harness
Connector Pitch：1.25MM
Connector : Molex 510210500, 2/3/4/5/6/7/8/10/12/14 pin
Crimp Terminal: 500588000
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Pitch Mating Interface: 1.25mm
Request Quote
Description Review
Description

Molex 51021 Series 1*5Pin Wire Harness Product Description


FLECONN can custom made  overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.

Detail description for Molex 1.25mm Pitch 501210500 Cable Assembly

Prouduct Name  Custom Molex 510210500 Connector Wire Harness
Equivalent to Molex Part No.  151340500，151340501，151340502，151340503，151340505，151340506，510210500
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 510210500 1.25mm Pitch Receptacle Housing, Dual Row, 5 Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 500588000 1.25mm Pitch Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact,
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007 AWG28#/26#/24#/22#/ tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1007 Round cable/ UL1571 Parallel cable
10. Color: Black, white, blue, green etc. MOQ 3000m except black.
11. Wiring diagrm: defined by customers
12. Inner molding material: LDPE resin
13. Outer molding material: 45P PVC resin
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag
























Molex 51021 Series 1*5Pin Wire Harness

Molex 51021 Series 1*5Pin Wire Harness

Molex 510210600 PicoBlade Receptacle Crimp Housing Wire Harness

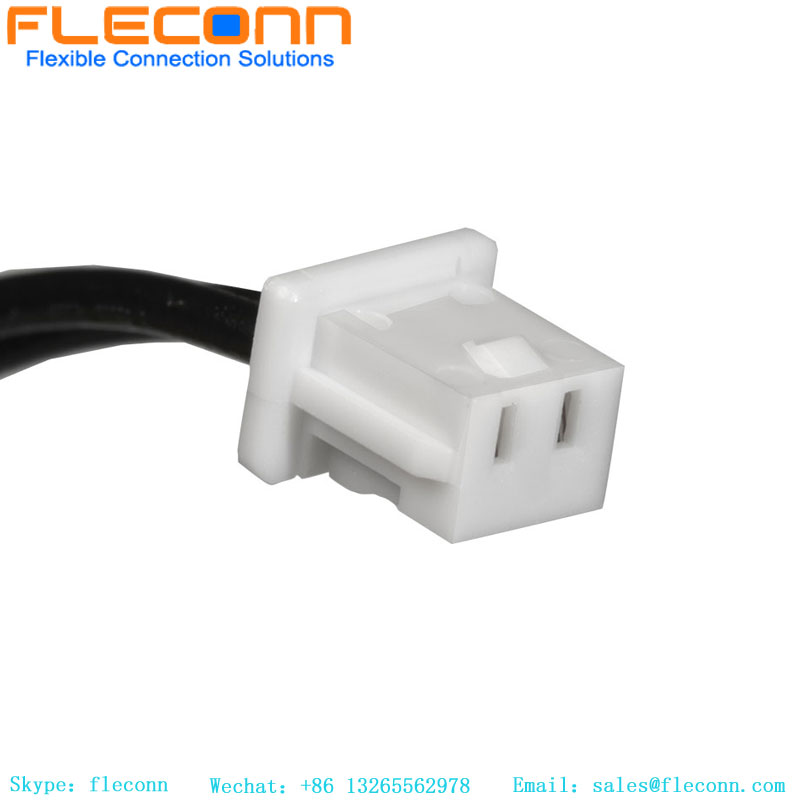

Molex 1.25mm Pitch 51021-0200 Wire Harness

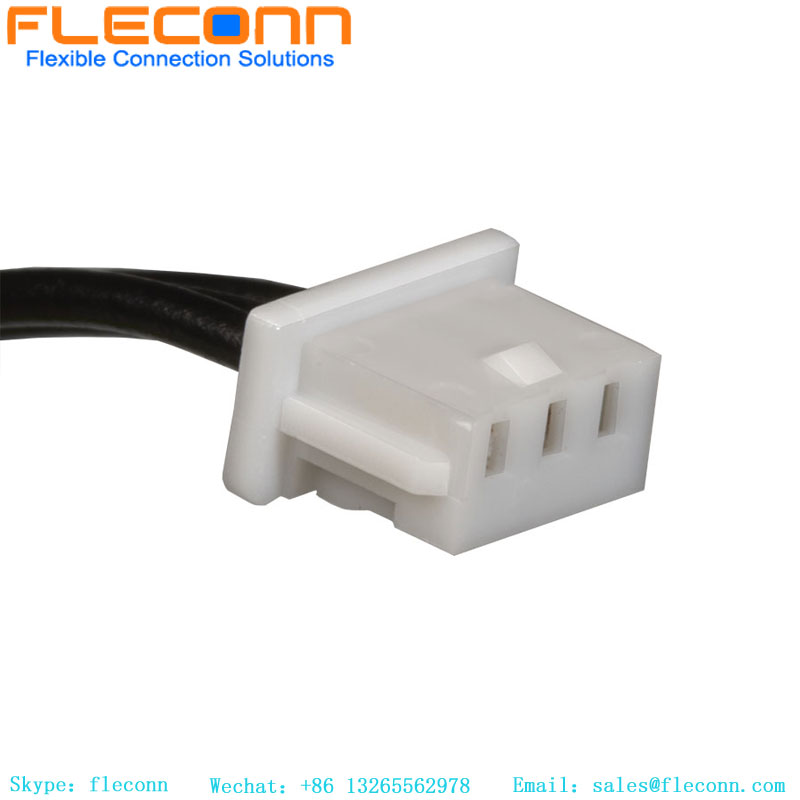

Molex 3 Pin 51021-0300 Cable Assembly

Molex 1.25mm Pitch 51021-0400 Cable Assembly

Molex Connector Wire Harness

FLECONN can custom Molex Micro-Fit 3.0 made overmolded cable assemblies available in various circuits and cable lengths.
