Home > Molex Connector Wire Harness > 1.25mm Pitch Wire Harness

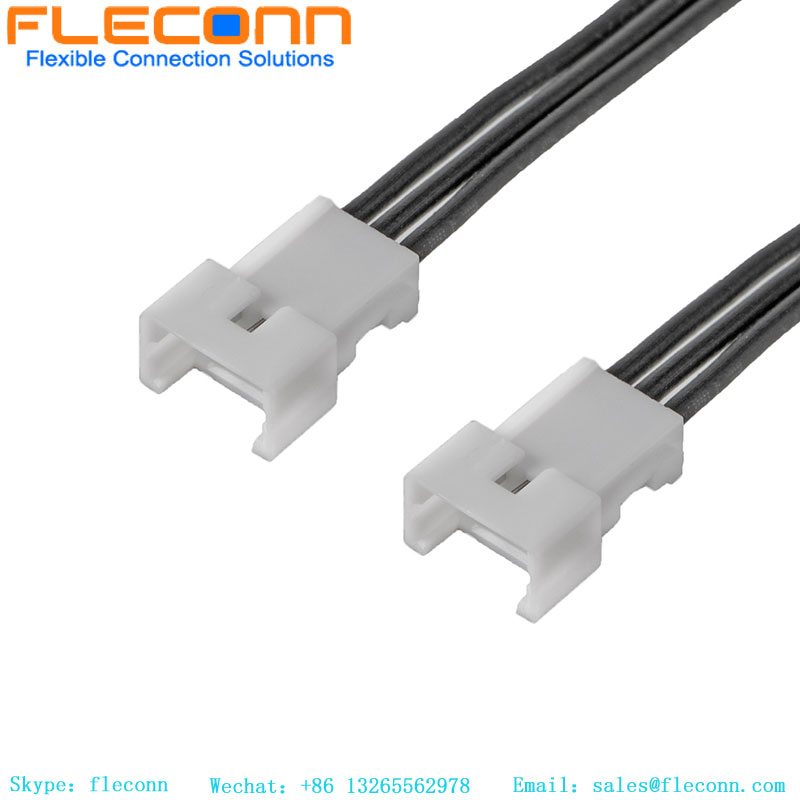

Molex 51047 Series 510470300 3P Connector Cable
Molex 51047 Series 510470300 3P Connector Cable Molex 51047 Series 510470300 3P Connector Cable Molex 51047 Series 510470300 3P Connector Cable Molex 51047 Series 510470300 3P Connector Cable Molex 51047 Series 510470300 3P Connector Cable

Molex 51047 Series 510470300 3P Connector Cable

Item No.: MX-51047-3P-1.25PH-0.5M
Product Name: 1.25mm Pitch Wire Harness
Connector Pitch：1.25MM
Connector : Molex 510470300, 2/3/4/5/6/7/8/10/12/14 pin
Crimp Terminal: 501338000
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Pitch Mating Interface: 1.25mm
Request Quote
Description Review
Description

Molex 51047 Series 510470300 3P Connector Cable Product Description


FLECONN can custom made  overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.

Detail description for Molex 1.25mm Pitch 510470300 Cable Assembly

Prouduct Name  Custom Molex 510470300 Connector Wire Harness
Equivalent to Molex Part No.  2181100300，2181100301，2181100302，2181100303，2181100304，510470300
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 510470300 1.25mm Pitch Receptacle Housing, Dual Row,  3Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 501338000 1.25mm Pitch Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact,
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007 AWG28#/26#/24#/22#/ tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1007 Round cable/ UL1571 Parallel cable
10. Color: Black, white, blue, green etc. MOQ 3000m except black.
11. Wiring diagrm: defined by customers
12. Inner molding material: LDPE resin
13. Outer molding material: 45P PVC resin
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag
