Molex Micro-Fit 3.0 Male-to-Pigtail Off-the-Shelf (OTS) Cable Assembly Description
FLECONN, as an overmolded cable assemblies and molded wire harness manufacturer, can custom 214753 & 43640 series molex microfit 3.0 cable with micro-fit 3.0 connector for power transmision. There are 2 3 4 5 6 7 8 9 10 11 12 pin Molex Micro-Fit 3.0 Cable receptacle housing such as manufacturer part number 43645-0200,43645-0300,43645-0400,43645-0500,43645-0600,43645-0700,43645-0800,43645-0900,43645-1000,43645-1100,43645-1200 available.
Detail description for Molex Micro-Fit 3.0 Male-to-Pigtail Off-the-Shelf (OTS) Cable Assembly
Prouduct Name |
Molex Micro-Fit 3.0 Male 43640-0300 3Pin Connector Wire Harness |
Equivalent to Molex Part No. |
2147531031,2147531032,2147531033,2147532031,2147532032,2147532033 |
Applications |
Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc. |
Technique characters |
1. Connector housing: 43640-0300 Micro-Fit 3.0 Receptacle Housing, Dual Row, 3 Circuits, UL 94V-0, Low-Halogen, Black |
2. Crimp terminal: 43031-0001 Micro-Fit 3.0 Crimp Terminal, Male, with Tin (Sn) Plated Phosphor Bronze Contact |
3. Connector type: rectangular |
4. Connector Feature: latch lock |
5. Wire: UL1007AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation. |
6. Cable jacket: black PVC jacket |
7. Shielded: un-shielded / braided shielded |
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized |
9. Cable style: UL1571 Round cable/ UL1007 Parallel cable |
10. Wiring diagrm: defined by customers |
Environment temperature: |
Ambient temperature for operation: -25…80℃ |
Waterproof Rating: |
IP4X |
Certificate: |
CE, RoHS, UL(connector, cable) |
Package: |
**pcs/bind or 1pcs/PE bag |

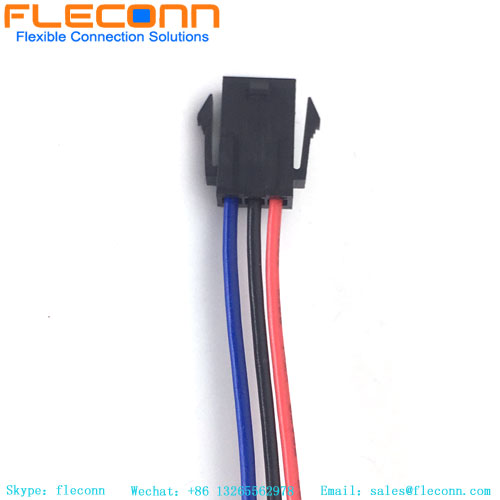

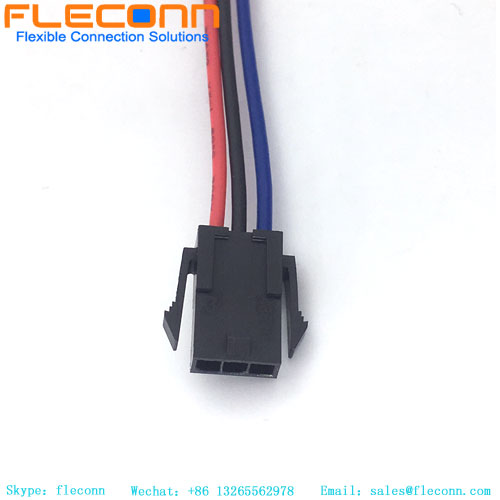

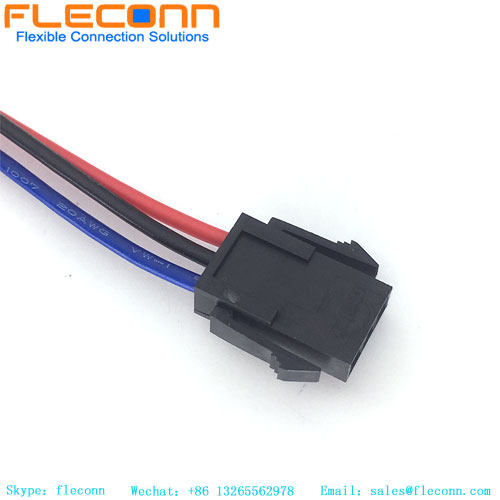

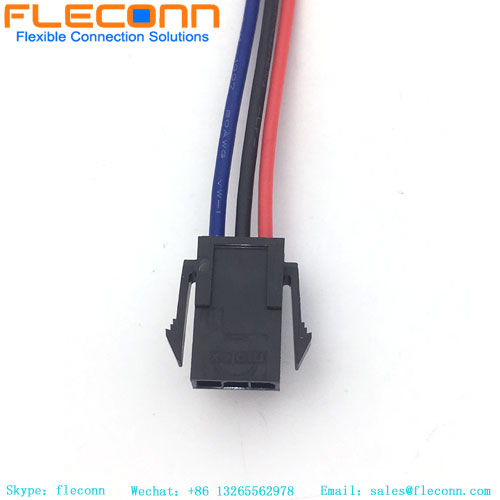

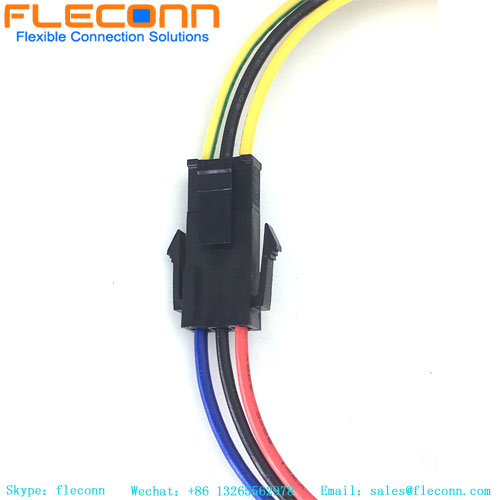

Molex Micro-Fit 3.0 Male-to-Pigtail Off-the-Shelf (OTS) Cable Assembly
![Micro-fit 3.0 43640 Overmolded Cable Assembly Micro-fit 3.0 Off-the-Shelf (OTS) 2 2147531031,2147531032,2147531033,2147532031,2147532032,2147532033, 3 pin cable wire harness](/u_file/2211/b0cd6a8414.jpg)
