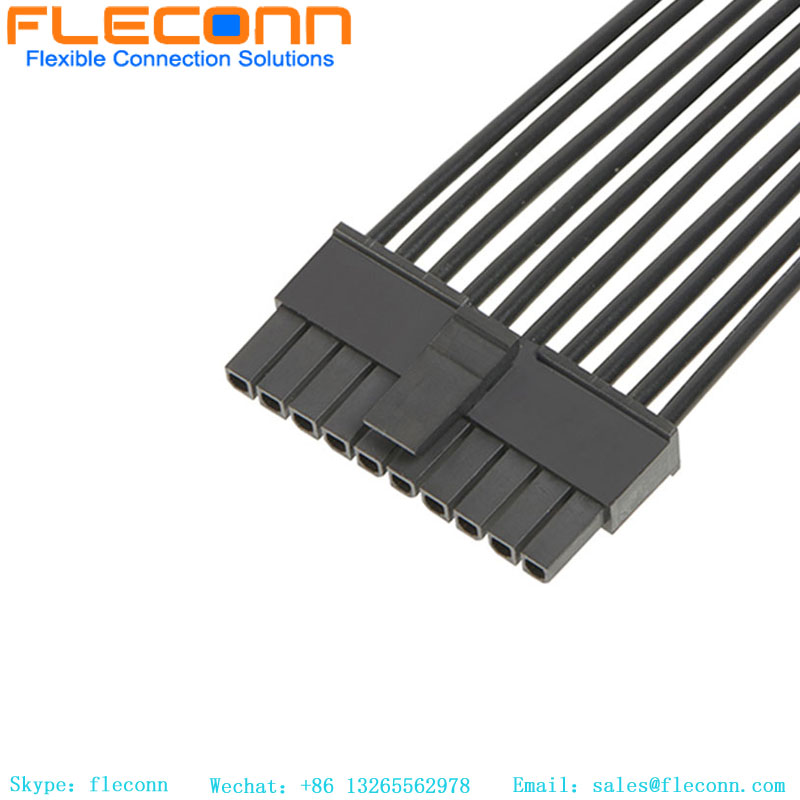

Molex Micro-Fit 43645 Series 10 Pin Connector Cable
Molex Micro-Fit 43645 Series 10 Pin Connector Cable Molex Micro-Fit 43645 Series 10 Pin Connector Cable Molex Micro-Fit 43645 Series 10 Pin Connector Cable Molex Micro-Fit 43645 Series 10 Pin Connector Cable Molex Micro-Fit 43645 Series 10 Pin Connector Cable Molex Micro-Fit 43645 Series 10 Pin Connector Cable Molex Micro-Fit 43645 Series 10 Pin Connector Cable

Molex Micro-Fit 43645 Series 10 Pin Connector Cable

Item No.: MX-43645-10P-3.0PH-PVC-0.5M
Product Name: Micro-Fit 3.0 Wire Harness
Connector Pitch：3.0MM
Connector : Molex 43645-1000, 4/6/8/12/14 pin
Crimp Terminal: 43030-0038
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Request Quote
Description
Description

Molex Micro-Fit 43645 Series 10 Pin Connector Cable Product Description



FLECONN can custom made  overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.

Detail description for Molex Micro-Fit 3.0 Pitch 043645-1000 Female to Micro-Fit 3.0 Female Cable Assembly

Prouduct Name  Molex Mirco Fit 3.0 Pitch 43645-1000 Connector Cable
Equivalent to Molex Part No. 2147501101，2147501102，2147501103
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 43645-1000 Micro-Fit 3.0 Receptacle Housing, Dual Row, 10 Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 43030-0001 Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 20-24 AWG, Reel. 430300004 26-30 AWG, 430300038 18 AWG
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007 AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1007 Round cable/ UL1571 Parallel cable
10. Color: Black, white, blue, green etc. MOQ 3000m except black.
11. Wiring diagrm: defined by customers
12. Inner molding material: LDPE resin
13. Outer molding material: 45P PVC resin
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag
























Molex Micro-Fit 43645 Series 10 Pin Connector Cable

Molex Micro-Fit 43645 Series 10 Pin Connector Cable

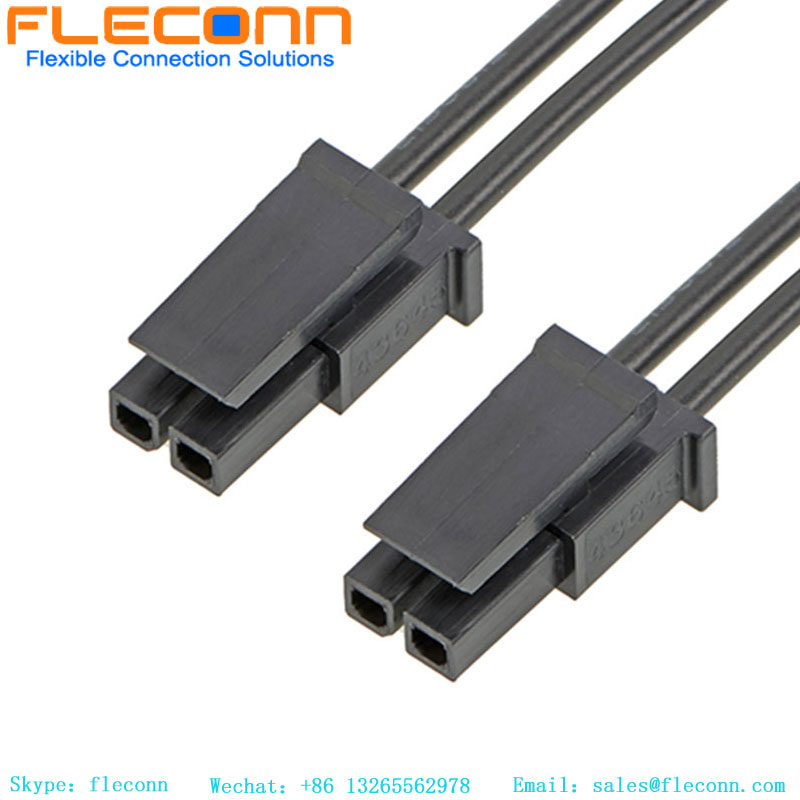

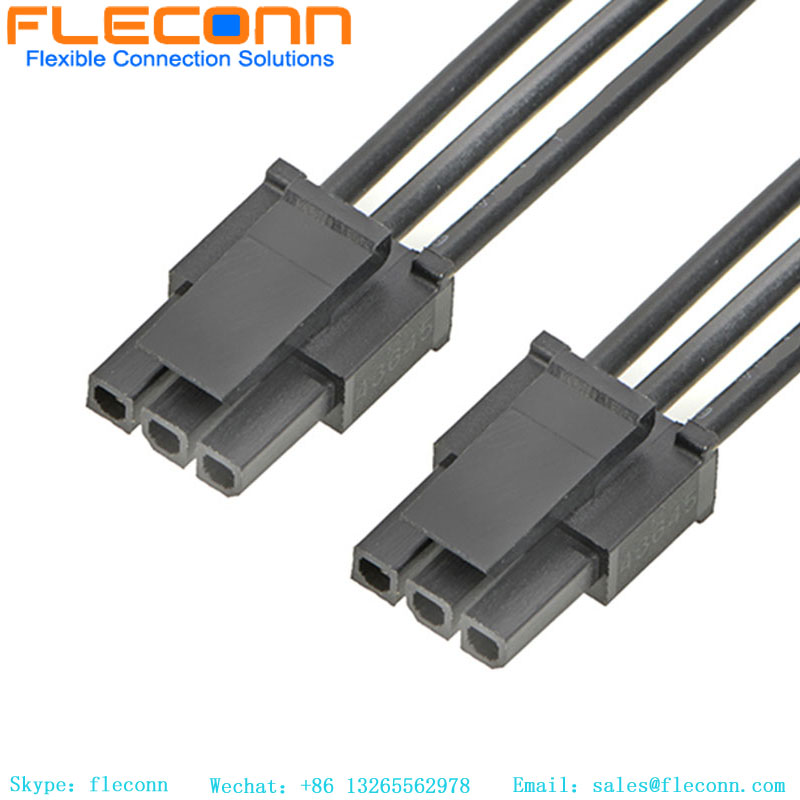

Molex Mirco Fit 3.0 Pitch 43645-0200 Connector CableMolex Micro-Fit 3.0 Pitch 043645-0300 Female to Micro-Fit 3.0 Female Cable Assembly

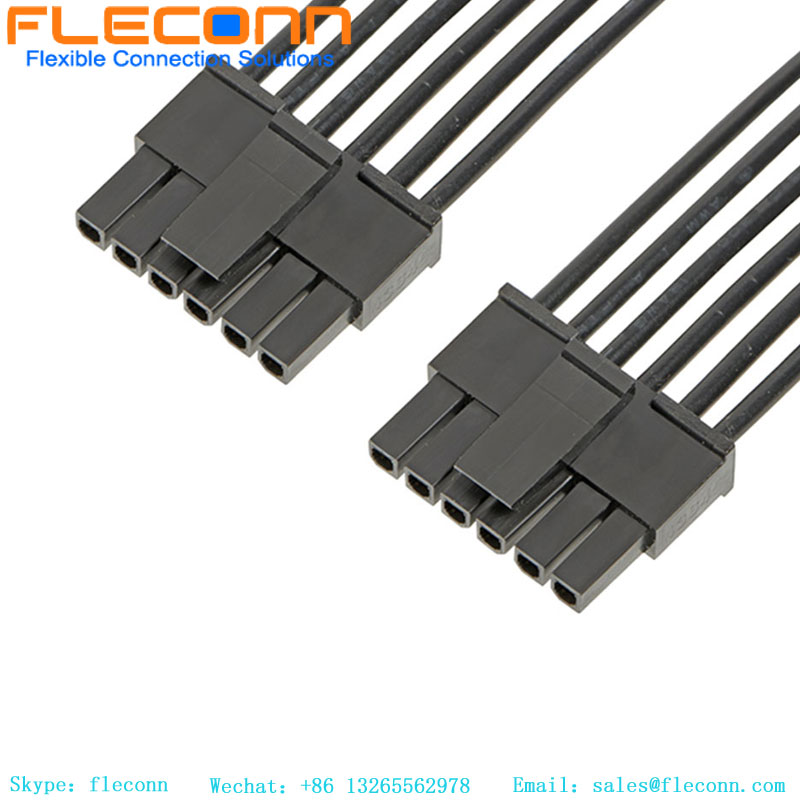

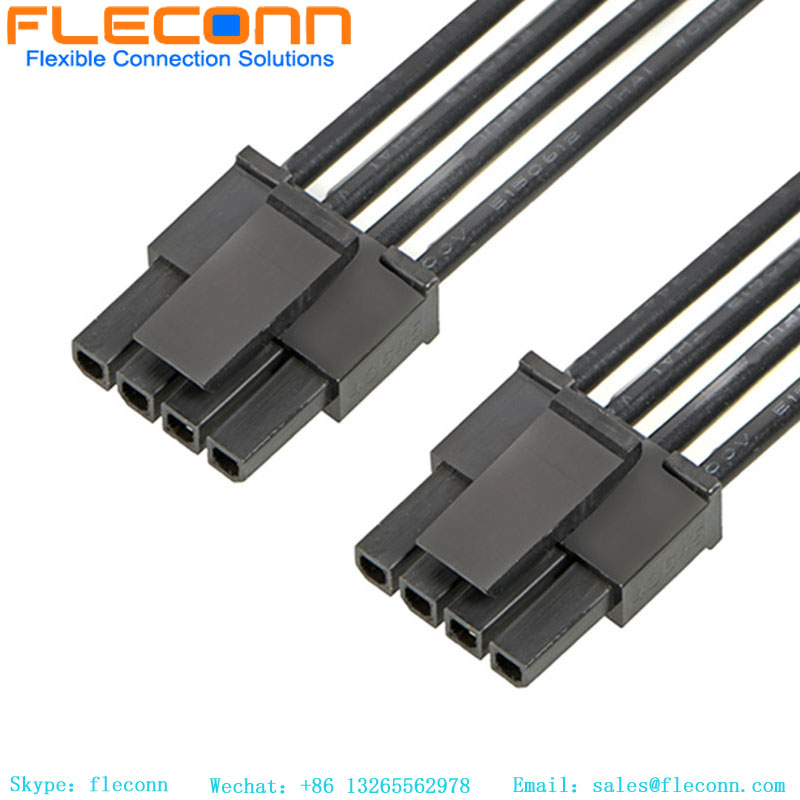

Molex Micro-Fit 43645-0400 Cable Assembly

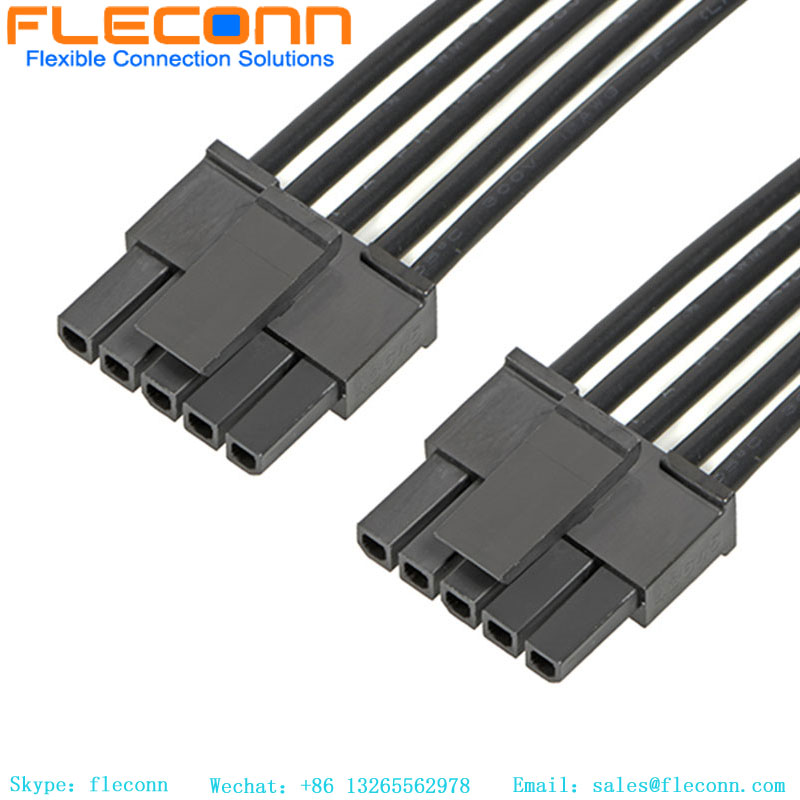

Custom Molex 43645-0500 Wire Harness

Custom Molex 43645 Series Connector Cable

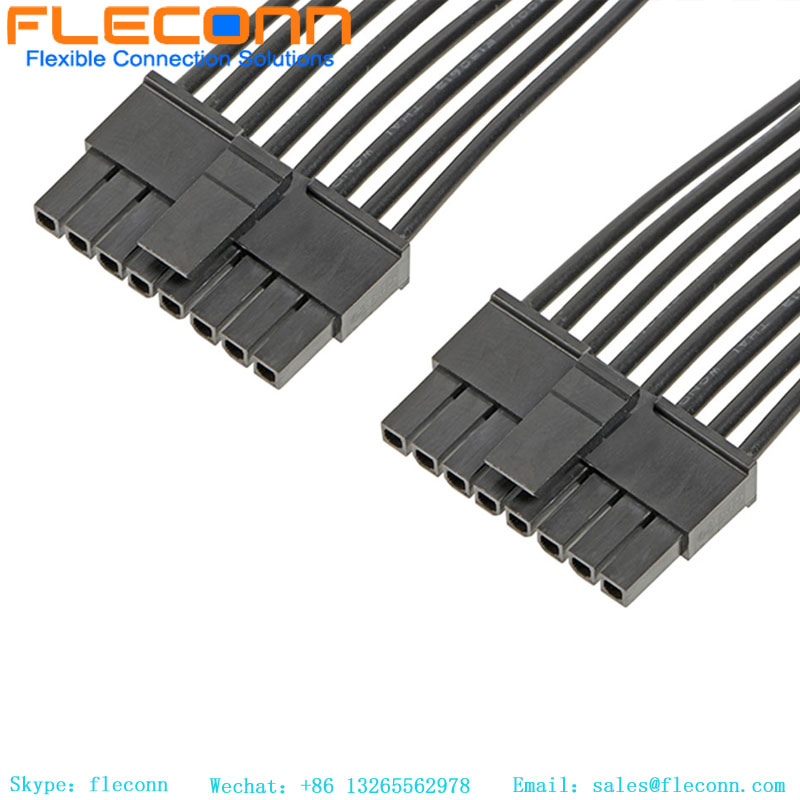

Molex 43645-0800 Female To Female Connector Cable

Molex Connector Cable Harnesses

FLECONN can custom Molex Micro-Fit 3.0 made overmolded cable assemblies available in various circuits and cable lengths.
